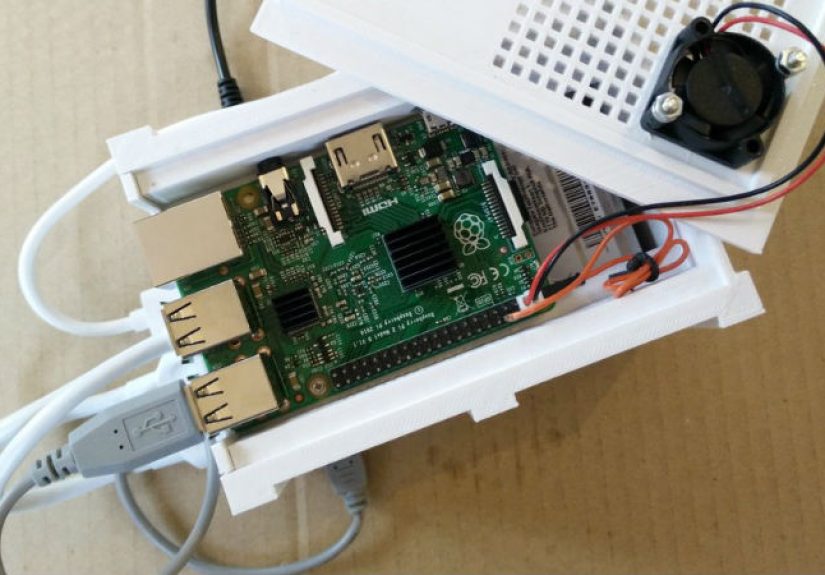

3D Printed Raspberry Pi NAS With Dual Drive Bays

A NAS is basically a small computer whose entire personality is “I hold your stuff and I do not judge you for having
seven versions of Final_FINAL_v3_reallyfinal.mov.” Now take that idea, shrink it down to Raspberry Pi size,
and wrap it in a 3D-printed case with two drive bays so it actually looks like a tiny, legit storage appliance.
That’s the magic of a 3D printed Raspberry Pi NAS with dual drive bays: it’s part practical home server,
part maker flex, and part “I refuse to pay cloud storage fees out of spite.”

This guide breaks down what matters in the real worldhardware choices, power, cooling, storage layout, and a
software setup that won’t make you regret your life choices at 2:00 a.m. We’ll keep it fun, but we’ll also keep it
honest: a Pi NAS can be fantastic, as long as you respect its limits (and don’t try to power two drives off vibes alone).

Why a 3D-Printed Dual-Bay Raspberry Pi NAS Makes Sense

Two drive bays is the sweet spot for “serious enough to be useful” without turning your desk into a data center.
With dual bays, you can:

• Mirror drives (RAID 1) for redundancyone drive dies, your files don’t (still, backups exist for a reason).
• Split dutiesone drive for media, one for backups, or one for shared files and one for surveillance footage.
• Start small but not flimsytwo bays feels like an appliance, not a science fair project taped to a USB hub.

The 3D-printed part is where it gets fun: you’re not stuck with whatever enclosure a vendor decided was “good enough.”
You can print rails for tool-less drive swaps, add a fan mount, route cables so they don’t look like spaghetti,
and even customize the front panel so your NAS has a little personality (or at least a power button that isn’t dangling in midair).

Hardware Planning: The “Don’t Paint Yourself Into a Corner” Checklist

Pick the Raspberry Pi (Pi 4 vs Pi 5)

For a NAS, the Raspberry Pi 4 is still a solid budget option: Gigabit Ethernet and USB 3.0 are enough for most home
use. The Raspberry Pi 5 is the “I want more headroom” choicefaster CPU, better I/O potential, and new storage expansion
options (including PCIe-based add-ons), which can matter if you’re chasing higher throughput or lower storage latency.

Practical rule: if you’re building a simple dual-bay home NAS for documents, photos, Time Machine, and occasional
media streaming, a Pi 4 can do the job. If you want the build to feel snappier, run more services (like Nextcloud,
Jellyfin, backups, and a few containers), or experiment with PCIe/NVMe expansion, Pi 5 is usually the better long-term play.

Choose Your Drives: 2.5" vs 3.5" (The Power Drama)

Dual-bay 3D-printed Pi NAS builds often use two 2.5" SATA drives (SSD or laptop HDD) because they’re easier
to power and physically easier to integrate into compact cases. Two 3.5" drives is possible, but 3.5" drives generally
want both 5V and 12V power, and that’s where simple builds get complicated fast.

• 2.5" SSDs: quiet, fast, low power, and less vibration. Great for a “set it and forget it” NAS.
• 2.5" HDDs: cheaper per TB than SSDs sometimes, but slower and still create some vibration.
• 3.5" HDDs: best cost per TB, but you’ll need a dedicated power solution and better vibration management.

How the Pi Talks to the Drives: USB-to-SATA vs PCIe/NVMe

For a dual-bay “two SATA drives in a printed enclosure” build, the most common approach is USB 3.0 to SATA adapters
(ideally UASP-capable). It’s approachable, affordable, and works well when you use decent bridges and stable power.

The more advanced route is using Pi 5’s expansion ecosystem (like dual NVMe add-on boards) and building a compact
“two-drive” setup using M.2 NVMe SSDs. That can be fast and elegant, but it’s not the same as “two hot-swap SATA bays”
unless you design the mechanics around it.

If your goal is literally dual drive bays with slide-in rails and that satisfying “click,” SATA in bays is still king.
If your goal is speed-per-liter in a tiny footprint, dual NVMe can be very appealing.

Power: The Part Everyone Underestimates Until It Bites Them

Most Raspberry Pi NAS horror stories begin with the phrase: “So I tried to power everything from the Pi…”
Drives spin up, voltage dips, the USB bridge gets cranky, and suddenly your NAS is doing interpretive dance.

A stable dual-bay build usually means:

• A proper Pi power supply (especially for Pi 5, which benefits from a higher-current USB-C supply).
• Drives with their own power (powered enclosure, powered hub, or a dedicated SATA power solution).
• Clean cabling so the case doesn’t become a stress test for your USB connectors.

Cooling and Vibration: Yes, Even the Cute NAS Needs Good Airflow

Storage devices don’t love heat, Raspberry Pi boards don’t love heat, and 3D-printed plastic doesn’t love heat either.
Dual bays also mean two sources of warmth (and possibly vibration), so a case design that includes a fan mount and vents
is not “extra”it’s sanity.

If you’re printing a compact enclosure, consider:

• Top or rear fan mount (40mm–80mm depending on the design)
• Intake vents near the drives and exhaust near the Pi/CPU area
• Rubber/TPU feet or vibration isolators so the case doesn’t hum like a tiny refrigerator

Designing (or Choosing) the 3D-Printed Dual-Bay Case

Material Choices: PLA Is Easy, PETG Is Smarter

PLA is convenient, but it can soften or creep in warmer environmentsespecially near drives and a Pi running under load.
PETG is commonly preferred for functional enclosures because it handles heat better and is tougher. If you’re printing
feet or vibration dampers, TPU is a great add-on.

Drive Rails, Screws, and “Tool-Less” Reality

A great dual-bay print uses rails so the drives slide in and out smoothly. But “tool-less” is a spectrum:

• Truly tool-less: the case clamps the drives, and alignment is built in (harder to design, nicer to live with).
• Semi tool-less: you use a couple of screws per drive or a bracket (still fine, just less hot-swap vibes).

Real-world tip: design tolerances matter. If your printer runs slightly tight, rails can turn into “drive jam dispensers.”
If it runs slightly loose, you get rattles and vibration. Many builders end up tweaking print settings, adding a little
foam tape, or adjusting the rail geometry in the model.

Cable Management: Make It Look Like You Meant It

Dual-bay builds often include two SATA-to-USB bridges and sometimes a compact USB hub tucked inside the case.
Plan cable routes before you print (or pick a model that already did). You want:

• Short USB cables that don’t block airflow
• Strain relief so connectors aren’t stressed
• Space for a fan without the cables grazing the blades (the fan will win that argument)

Software Stack: Make the NAS Useful (and Not a Full-Time Job)

OpenMediaVault: The “Web UI That Saves Your Weekend” Option

OpenMediaVault (OMV) is popular because it gives you a clean web interface for the stuff you actually care about:
disks, filesystems, shares, users, services, and monitoring. It’s basically “Debian, but with a NAS control panel.”

Typical approach:

1. Install Raspberry Pi OS Lite (or Debian-based OS suitable for your Pi).
2. Install OMV (often via a guided script approach many tutorials reference).
3. Attach drives, format, mount, and configure shares (SMB/CIFS for most home networks).
4. Create users and permissions so you’re not running everything as admin forever (future-you will thank you).

Filesystems and Redundancy: RAID 1, Mirror, or “Just Back It Up”

Two bays invites the RAID conversation like a moth to a flame. Here’s the grounded take:

• RAID is not a backup. It’s uptime and convenience. You still want backups for accidents, ransomware, and “oops.”
• RAID 1 (mirror) is the simplest redundancy concept: both drives contain the same data.
• Single disks + backups is often enough for casual home use (and sometimes safer if your storage interface is flaky).

If you do mirror, Linux software RAID (mdadm) is a classic approach. If you use a checksumming filesystem that supports
mirrored profiles, you can also get integrity checks plus periodic scrubs. Either way, schedule regular health checks
and monitor SMART data so you get early warnings instead of surprise heartbreak.

Monitoring: The NAS Should Tell You When It’s Sad

At minimum, you want:

• SMART monitoring (drive health, reallocated sectors, temps)
• Regular scrubs/checks if your stack supports them
• Alerts (email, push, or at least a dashboard warning)

The goal is simple: if a drive is failing, you want to find out before the drive starts making that “tiny maraca”
noise that means your weekend just got canceled.

Performance: Getting the Best Speed Without Chasing Unicorns

Network Throughput vs Storage Throughput

Most home networks are still Gigabit Ethernet. Real-world SMB transfers often land somewhere around
“fast enough to not think about it,” especially with SSDs. If you go beyond that (like 2.5GbE), you’ll want your
storage interface and CPU to keep upor you’ll just move the bottleneck and call it progress.

USB-to-SATA Quality Matters (UASP Helps)

If you’re using USB-to-SATA bridges, choose ones known to behave well under Linux and support UASP.
With two drives, a stable hub or powered solution makes everything more reliable, especially during simultaneous reads/writes.

Small Files vs Big Files

Big media files copy quickly and make you feel like a genius. Small files (photos, code repos, documents, app data)
are where you see overhead: filesystem metadata, SMB chatter, and USB bridge quirks show up more. If your use case is
“lots of small files,” prioritize stability, good adapters, and a sensible filesystemdon’t just chase peak benchmark numbers.

Security and Reliability: Don’t Ship Your Personal Files to the “Oops” Dimension

• Use real user accounts and avoid guest write access unless you love chaos.
• Keep OS and packages updated (schedule it, don’t “remember” it).
• Disable services you don’t use. Every extra open service is another thing to patch and protect.
• Backups: a USB backup drive, a second NAS, or encrypted cloud sync for the truly important stuff.
• Power protection: if your area has flaky power, a small UPS can prevent corruption and protect drives.

Example Build Blueprint: Dual 2.5" Bays (SATA) in a Printed Case

Parts List (Typical)

• Raspberry Pi 4 or Raspberry Pi 5 (RAM size based on how many services you’ll run)
• Two 2.5" SATA SSDs (example: 1–4TB each, depending on your needs)
• Two UASP-capable USB 3.0 to SATA adapters
• Powered USB 3.0 hub (compact) or a dual-drive powered enclosure solution
• Appropriate Pi power supply
• 40mm–80mm fan (depending on case design) + screws
• 3D-printed case (PETG recommended), optional TPU feet

Assembly Flow

1. Print the case and test-fit the drives in the rails before you mount electronics.
2. Mount the Pi (standoffs help prevent shorts and improve airflow).
3. Install the drives into bays and connect via adapters (or internal USB hub if your design includes one).
4. Add cooling (fan orientation matters: decide intake vs exhaust based on vent layout).
5. Power strategy: power the Pi cleanly, and power drives/hub separately if needed.

Software Flow (OMV-Oriented)

1. Install OS on a reliable boot device (microSD can work; SSD/NVMe boot can be more reliable long-term).
2. Install OMV and access the web UI from another computer.
3. Wipe/format drives, create filesystems, mount them.
4. Create shared folders and SMB shares; create users and permissions.
5. Enable SMART monitoring; set up scheduled checks; configure notifications.
6. Test transfers (big and small files), then adjust SMB options only if needed.

Troubleshooting: Common Faceplants and How to Avoid Them

Problem: Drives Disconnect Under Load

• Likely cause: power instability or cheap USB bridge behavior.
• Fix: use powered hub/enclosure, shorten cables, choose better USB-to-SATA adapters.

Problem: The Case Vibrates / Hums

• Likely cause: HDD vibration transferring into rigid plastic.
• Fix: add TPU feet, foam pads, or redesign drive mounts with isolation.

Problem: It’s Hot Enough to Toast Bread

• Likely cause: no airflow path, fan not positioned well, or PLA in a warm enclosure.
• Fix: better venting, bigger/slower fan, PETG, and active cooling for the Pi if needed.

Wrap-Up: A Tiny NAS With Real Appliance Energy

A 3D printed Raspberry Pi NAS with dual drive bays is one of those rare DIY projects that’s both fun to build
and genuinely useful afterward. The secret sauce is balance: pick stable storage adapters, don’t cheap out on power,
give the enclosure airflow, and use NAS-friendly software so management doesn’t feel like a second job.

Two bays gives you flexibilitymirror for redundancy, split for organization, or experiment with different roles.
And because you’re printing the enclosure, you can keep iterating: better cable routing, quieter cooling, cleaner drive rails,
and the kind of front-panel design that makes your NAS look less like “random box” and more like “tiny server with confidence.”

500+ Words of Real-World Build Experiences and Lessons (So You Don’t Learn the Hard Way)

Here’s what builders tend to discover after the “it boots!” celebration fades and the NAS starts doing daily life.
First: power is the boss. A dual-drive Pi NAS can run perfectly for hours… and then fall apart during a big copy job
when both drives ramp up and the Pi spikes CPU. The most common “experience” story is a drive dropping mid-transfer,
followed by a frantic search for logs, followed by the realization that the USB bridge and the power path were never
meant to handle that moment. People fix it by moving drives to a powered enclosure, adding a powered hub, upgrading the
Pi supply, and cleaning up cables. It’s not glamorous, but it’s the difference between “NAS appliance” and “mystery box.”

Second: 3D printing tolerances are real. Drive rails that look perfect in CAD can be too tight once printed,
especially if your printer slightly over-extrudes or your filament swells a bit. Builders often end up sanding rails,
adding a tiny chamfer, or revising the model so drives glide instead of scraping. On the flip side, rails can be too loose,
which makes the drives rattleespecially with HDDs. The “aha” moment is realizing that a tiny amount of wiggle becomes
a noticeable hum when vibration transfers into a hollow plastic box. Simple fixesTPU feet, thin foam tape, or a redesigned
mountmake a dramatic difference in how “finished” the NAS feels.

Third: cooling is not optional if you want longevity. Many people start with “it’s probably fine”
and then notice drives running warmer than expected because air has nowhere to go. A case can have a fan and still be bad
if there’s no intake path or if cables block the airflow channel. The most satisfying experience tweak is re-orienting the fan
(intake vs exhaust), adding a few strategic vents, and routing cables away from the “wind tunnel.” Suddenly temps drop,
the NAS runs quieter, and you stop thinking about itwhich is the real victory.

Fourth: software permissions and shares are where confidence goes to get humbled. It’s common to get SMB working,
feel triumphant, then realize one computer can write and another can’t, or that your “media” folder is owned by root
because of an early misstep. The experienced move is to create users/groups early, keep share permissions consistent,
and test from multiple devices before declaring victory. That short, slightly annoying setup phase saves you from
the long, slightly soul-draining troubleshooting phase later.

Finally: builders who stay happiest long-term usually adopt one mindset: redundancy plus backups.
Mirroring two drives feels safe, until someone deletes the wrong folder and the mirror dutifully deletes it on both drives
like a very obedient robot. The “best” real-world pattern is: mirror for uptime (optional), plus an actual backup plan
for the stuff that matters. Once that’s in place, the Pi NAS stops being a fragile experiment and becomes what you wanted:
a quiet, compact, customizable home storage box that just works.
