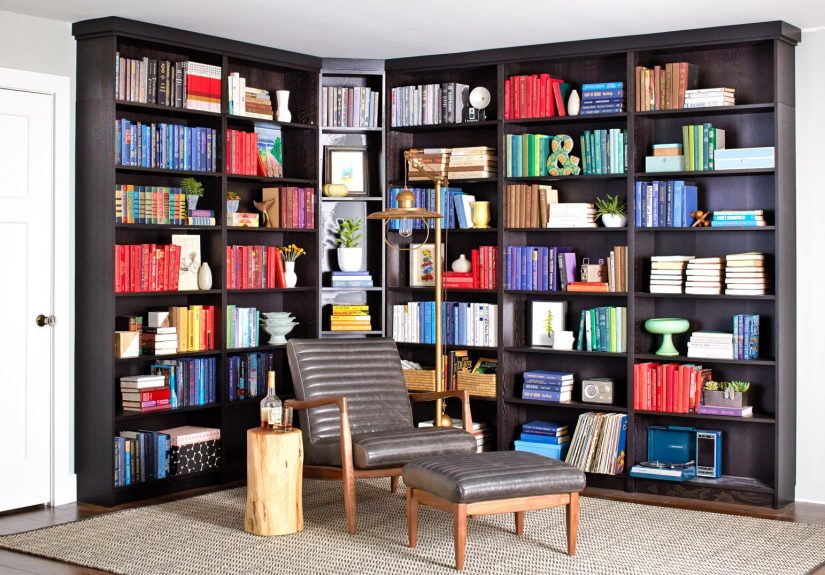

How to Make Bookcases Look Built-In Using Trim with Our DIY Project

Built-ins have that “custom home tour” energy. They also have that “custom home tour” price tag.
The good news: you can fake the built-in look (politely: replicate) with off-the-shelf bookcases
and a little trim carpentry. The better news: you don’t need to be a cabinetmaker, you just need to be
stubborn, mildly patient, and willing to say “measure twice” out loud like it’s a spell.

In this guide, I’ll walk you through a DIY approach that makes plain bookcases look like they were built
with the house. We’ll cover planning, leveling, anchoring, trim choices, face frames, filling ceiling gaps,
and pro-level finishing so it doesn’t scream “weekend project” (even if it absolutely was).

Why Trim Works: The “Built-In Illusion” Explained

Most freestanding bookcases look freestanding for three obvious reasons: you can see the side gaps, you can
see the top gap to the ceiling, and you can see the individual “units” instead of one continuous wall.
Trim fixes all three.

• Side trim hides wall gaps and makes edges look intentional.
• Top trim / a header closes the ceiling gap, like real cabinetry.
• A face frame visually merges multiple bookcases into one built-in run.

Before You Buy Anything: A Quick Reality Check

Built-ins only look “built-in” if they’re straight. And walls are rarely straight. So your first job is
to design for the room you have, not the room you wish you had.

Measure the Wall Like You Mean It

• Width: Measure baseboard-to-baseboard in at least three spots (top/middle/bottom). Use the smallest number.
• Height: Measure floor-to-ceiling in at least two spots. Older homes love surprises.
• Depth: Make sure your bookcases won’t block outlets, vents, or doors.

Pick Bookcases That Make the Hack Easier

For the most convincing built-in look, choose the tallest bookcases that fit your space. If they stop way
below the ceiling, you’ll need a bigger header/soffit, which is totally doablejust slightly more work.

Tools and Materials

You can do this with basic tools. The trim work looks fancy; the process is mostly “cut straight things and attach them.”

Tools

• Stud finder
• Level (a 4-foot level is ideal) + a small torpedo level
• Tape measure + pencil
• Miter saw (or miter box + patience)
• Brad nailer (or finish nails + hammer + extra patience)
• Drill/driver + bits
• Caulk gun
• Sandpaper (80, 120, 220 grit) or a sanding sponge
• Safety gear (glasses, hearing protection, mask)

Materials

• Bookcases (one or more)
• Trim boards (common: 1×2, 1×3, 1×4 poplar or primed pine)
• Baseboard and/or shoe molding (to match your room)
• Crown molding (optional but highly recommended for the “built-in” vibe)
• Wood shims
• Construction adhesive (optional; use thoughtfully)
• Wood filler
• Paintable caulk
• Primer + paint (cabinet/trim-grade paint if possible)
• Mounting screws for stud anchoring

Step-by-Step: Turning Bookcases Into “Built-Ins” With Trim

Step 1: Decide if You’re Removing the Baseboard

You have three options:

• Remove the baseboard behind the bookcases: cleanest fit, most “built-in.”
• Notch the bookcase back: works for some units (and some courage levels).
• Build a base platform that sits proud of the baseboard: easiest for many DIYers, and it adds a toe-kick look.

If you want the bookcases to look like cabinetry, a simple platform base is a game-changer: it lifts them,
levels them, and gives you something to run baseboard across like one continuous built-in.

Step 2: Build a Simple Leveling Base (Optional, But Very Worth It)

A basic base can be a rectangular frame built from 2x4s (or 2x3s for a slimmer profile), anchored to the wall and floor.
Think of it as a stage for your bookcasesno jazz hands required.

1. Build the frame to match the footprint of your bookcase run.
2. Set it in place and shim until level front-to-back and side-to-side.
3. Anchor it securely (especially if you’re spanning multiple bookcases).

Example: Your ceiling is 96″. Your bookcase is 79.5″ tall. You build a 3.5″ base.
Total height becomes 83″. That leaves 13″ to the ceilingperfect for a header panel and crown molding that
looks intentional instead of “oops, we ran out of bookshelf.”

Step 3: Assemble and Place the Bookcases

Assemble the units and place them on your base (or directly on the floor). Push them tight to the wall,
then step back and check the reveal along the sides. That uneven gap you see? That’s not failurethat’s
why trim exists.

Step 4: Level, Plumb, and Shim (The Unsexy Secret to Pro Results)

Use shims under the bookcases (or between the bookcases and wall) until the fronts are plumb and the tops are level.
If one unit leans, it will telegraph through the trim, and you’ll spend the rest of your life noticing it.

• Level: top edge should read level across the whole run.
• Plumb: the face should be vertical, not leaning in/out.
• Flush: fronts of adjacent bookcases should align.

Step 5: Connect Multiple Bookcases Into One Solid Run

If you’re using more than one unit, clamp the faces together, pre-drill, and screw them together
(usually through the side panels where it won’t be visible once trimmed).

This step stops the “accordion effect” where each bookcase shifts slightly and ruins the built-in illusion.

Step 6: Anchor Everything to Wall Studs (Please Don’t Skip This)

Tall furniture should be anchored to the wallbuilt-ins are anchored by design, and your DIY version should be too.
Find studs and secure each bookcase (or the run) with appropriate screws. If you’re covering the top with trim,
you can often place fasteners in spots that will later be hidden.

Step 7: Hide the Side Gaps With Filler Strips

Side gaps are normal. Walls bow, corners aren’t square, and houses settle. The fix is simple: add filler strips
(thin boards) between the bookcase and wall, then trim over them.

1. Measure the widest gap on each side.
2. Cut a filler strip (often 1/2″ to 3/4″ thick) to bridge that space.
3. Attach it to the bookcase edge (not the wall), then trim over it.

Step 8: Add a Face Frame to Make Separate Units Look Like One Built-In

A face frame is the magic trick. It creates one continuous “front” that reads like custom cabinetry.
You can keep it simple (flat boards) or add detail trim for a more traditional look.

• Stiles: vertical boards that run along the outer edges and between bookcases
• Rails: horizontal boards at the top and bottom (and sometimes between shelves)

Pro tip: Let the outer stiles overhang slightly (even 1/4″) where they meet the wall.
That gives you room to scribe or cover imperfect wall edges for a seamless fit.

Step 9: Close the Ceiling Gap With a Header (So It Looks Truly Built-In)

If your bookcases don’t reach the ceiling, build a simple header box:

1. Add a horizontal board across the top front (like a “bridge” over the units).
2. Add vertical side returns to make it look like a real cabinet top.
3. Cover the seams with trim.

Then add crown molding, which hides tiny inconsistencies and makes the whole installation look intentional and architectural.

Step 10: Install Baseboard Across the Front for the Final “Built-In” Tell

Once the bookcases are in place, run baseboard across the bottom as if the bookcases are part of the room’s millwork.
If your baseboard profile matches the rest of the room, the brain basically goes, “Ah yes, these have always been here.”

Make It Look Like a Pro: Scribing, Caulking, and Disappearing Seams

Scribing: The Fancy Word for “Matching the Wall’s Weirdness”

If your wall is wavy (many are), a straight board will leave a visible gap. Scribing solves that by transferring the wall’s contour
onto your trim so you can cut it to fit.

1. Hold the trim in place where it will live.
2. Use a compass/scribing tool to trace the wall shape onto the trim.
3. Cut along the line and test-fit. Adjust gradually.

If that sounds intimidating, you can also use scribe molding (a thin, flexible strip) to cover small gaps.
It’s basically Spanx for trim: forgiving and confidence-boosting.

Caulk: Your Secret Weapon (Not Your Structural Plan)

Caulk is for small seams, not for hiding a half-inch gap you could drive a toy car through. Use it where trim meets wall,
especially at the top and sides, and smooth it for a clean line.

Finishing: Paint and Prep That Makes It Look Expensive

Trim work looks sharp when the finish is sharp. This is where “DIY” can accidentally showunless you slow down and prep.

Sand, Prime, Paint (Yes, Even If You Hate Sanding)

• Sand glossy surfaces so primer can grip (120 grit is a great all-purpose start).
• Fill nail holes and seams with wood filler; sand smooth once dry.
• Prime raw wood and patched areas.
• Use a durable trim paint (often satin or semi-gloss) for easy cleaning.

How to Avoid the “Trim Shadow”

That tiny ridge where trim meets bookcase? If you don’t fill and sand properly, it catches light and looks like a DIY scar.
A thin skim of filler, a quick sand, and a crisp paint job makes it disappear.

Common Mistakes to Avoid (Ask Me How I Know)

• Skipping leveling: Crooked shelves make the whole wall look “off,” even if the trim is perfect.
• Using trim that’s too dainty: Tiny trim reads like decoration, not built-in millwork.
• Forgetting the top: The ceiling gap is the biggest “not built-in” giveaway.
• Over-caulking: Caulk should be invisible, not a marshmallow border.
• Not anchoring: Safety first, then aesthetics. Always.

Style Tips That Make Built-Ins Look Intentional

Add Lighting for Instant “Custom” Energy

Picture lights or small puck lights elevate the whole project. Even if you don’t hardwire, battery options can still add
that warm, library glow.

Use a Consistent Color Strategy

Painting the bookcases, trim, and header the same color helps them read as one built-in unit. Want drama? Go moody.
Want timeless? Soft white never gets fired.

Decorate Like a Human, Not a Catalog

Mix vertical and horizontal stacks of books, add a few oddly shaped objects, and leave some breathing room.
If every shelf is stuffed, it looks like storage. If it’s styled with intention, it looks like design.

Our DIY Experience: The Stuff No Tutorial Mentions (About )

We went into this project with peak confidencethe kind you only get right before a tape measure humbles you.
Our plan was simple: line up the bookcases, slap on trim, paint, and spend the evening sipping something celebratory
while admiring our new “library.” Reality was… still good, but with a few plot twists.

First surprise: our floor was not level. Not “cute old-house character” unlevel. More like “why is the bubble fleeing
the level like it owes it money?” unlevel. We used shims under the base platform and learned a valuable lesson:
leveling isn’t optional. It’s the difference between built-in and “built-ish.” Once we got the base level, everything
else stopped fighting us. The bookcases sat flatter, the tops lined up better, and suddenly the whole wall looked calmer.

Second surprise: the wall had a gentle bowgentle enough to be invisible until you put a straight board against it and
stare directly at the gap like it personally insulted you. We debated forcing the trim tight (bad idea) and landed on
filler strips plus scribe molding. That combo felt like cheating in the best way. The filler made the big gap disappear,
the scribe hid the last little wiggles, and we got that crisp edge that tricks your brain into thinking “custom.”

Third surprise: paint is either your best friend or your worst enemy depending on how much prep you do. We tried to rush
one section (because we are apparently allergic to learning things the easy way) and ended up with a faint seam line where
the face frame met the bookcase. In normal lighting it was fine. In afternoon sunlight it looked like a neon sign that read,
“HELLO, I WAS ATTACHED ON A SATURDAY.” We fixed it by re-filling, sanding, and repainting, which took less time than the
emotional damage of noticing it every day.

The most satisfying moment was installing the crown molding. Before crown, it looked like a nice DIY upgrade. After crown,
it looked like a built-in. It’s wild how one trim piece can erase all the “separate parts” energy and replace it with
“architectural feature.” If you’re on the fence about crown, I’ll just say this: crown is the mascara of millwork.
You can look fine without it, but wow, it pulls everything together.

Our last “experience lesson” was about patience with finishing details: caulk lines, nail holes, and touch-ups. Those are
not the glamorous steps, but they are the steps people actually see. Once we slowed down, smoothed the caulk properly,
and did one last careful paint pass, the built-in illusion became genuinely convincing. We’ve had guests ask who built them,
and we’ve enjoyed answering, “A highly skilled craftsperson,” which is technically true if you define “highly skilled” as
“watched a lot of tutorials and refused to quit.”

Conclusion

Making bookcases look built-in is really a game of hiding clues: hide the gaps, hide the seams, hide the fact that your wall
is doing its own interpretive dance. With careful leveling, smart filler strips, a clean face frame, and trim that connects
everything to the ceiling and baseboard, you can get that custom look without custom pricing.

Take your time on the setup, don’t skip anchoring, and remember: trim carpentry is just adult arts and crafts with louder tools.
