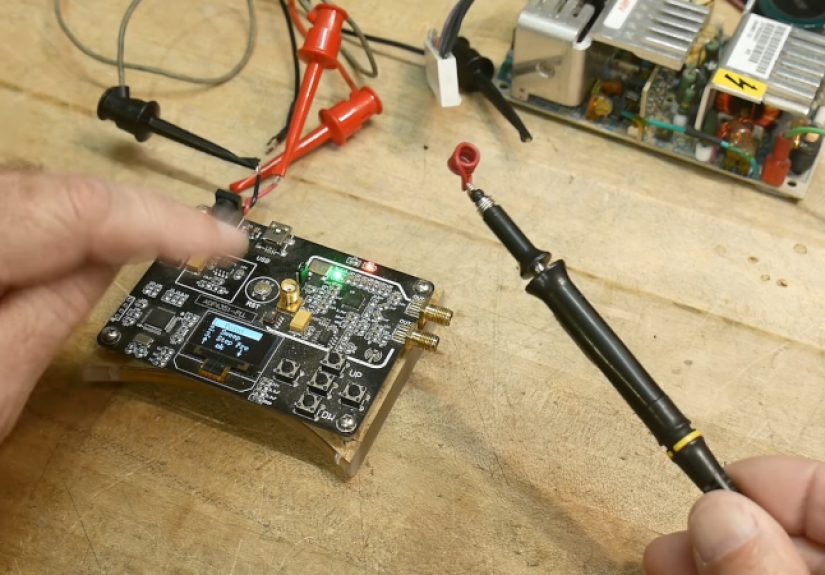

Non Contact Scope Probe Costs Nearly Nothing

If you’ve ever looked at the price of a “real” probe kit and briefly considered taking up a cheaper hobbylike
restoring classic yachtsthis article is for you. A non-contact scope probe (often called a
“sniffer,” “near-field probe,” or “pickup probe”) is the wonderfully scrappy tool that lets your oscilloscope
listen to what’s happening on a board without making an electrical connection.

The punchline: you can build one that’s genuinely useful for troubleshooting for the price of a coffee (or less),
because the “expensive part” is mostly your oscilloscope’s input stagethe 1 MΩ input impedance and its small
input capacitance do a lot of heavy lifting. The caveat (because engineering is a party with a strict dress code):
it won’t give you precision voltage measurements. It will, however, help you find the noisy villain on your PCB
faster than squinting at traces and whispering, “Please be the crystal…”

What a Non-Contact Scope Probe Is (and What It Isn’t)

A non-contact scope probe is basically a tiny antenna you connect to your scope. Instead of touching a node with a
probe tip and ground clip, you hold the probe near a trace, IC, cable, or connector and measure the
electromagnetic field around it:

• E-field (electric field) probes tend to couple to changing voltages. Think “voltage-y stuff.”
• H-field (magnetic field) probes tend to couple to changing currents. Think “current-y stuff.”

What it isn’t: a safe, rated, calibrated instrument for measuring mains, high voltage, or anything
where your future comfort depends on CAT ratings. “Non-contact” does not mean “non-danger.” It means “no galvanic
connection.” Your body and the probe can still capacitively couple to unpleasant energy if you get reckless.

Why It Costs Nearly Nothing

Traditional passive oscilloscope probes spend their money on predictable attenuation (like 10×), wide bandwidth,
rugged mechanical design, and compensation networks that keep square waves looking like square waves.
A near-field probe spends its money on… being a piece of wire shaped on purpose.

When you build a non-contact probe, you’re exploiting three things you already own:

1. Your scope’s high impedance input (commonly 1 MΩ in parallel with a small capacitance).
2. Stray capacitance and mutual inductance between the probe and the circuit under test.
3. A coax cable to keep your “antenna” from turning into a random noise collection hobby.

The result is a tool that’s perfect for “Where is this clock leaking?” or “Which converter is screaming at 600 kHz?”
or “Why does my reset line look haunted?”without soldering, clipping, or disturbing the circuit much.

The Core Idea: You’re Measuring Coupling, Not a Node

Here’s the mental model that keeps expectations healthy:
non-contact probing measures how strongly your probe couples to the source. That coupling depends on
distance, orientation, probe geometry, frequency, nearby ground planes, shielding, and the phase of the moon
(okay, not the moon, but it can feel like it).

That’s why near-field probing is usually used for relative measurementscomparing “before vs after”
a layout change, or “this area vs that area” on a boardrather than reporting a single authoritative voltage value.

Three Dirt-Cheap Builds That Actually Work

Below are practical, low-cost builds you can do with common parts. None of these require exotic resistive coax,
precision compensation capacitors, or a wizard license.

1) The “Foil Paddle” E-Field Probe (Voltage Sniffer)

Best for: finding fast digital edges, clock traces, noisy GPIOs, switch nodes, and “why is that cable radiating?”

Materials (typical):

• One BNC-to-coax lead (or any coax with a BNC that fits your scope)
• Copper tape or aluminum foil
• Heat-shrink or electrical tape
• (Optional) 100 Ω–1 kΩ series resistor near the “tip” for a little protection/damping

How to build it:

1. Strip a small section of the coax end (the “probe” end): expose the center conductor and a bit of shield.
2. Connect the shield to nothing “pointy.” Keep it short and tidy; the shield wants to be a controlled reference.
3. Make a small “paddle” by wrapping copper tape/foil around an insulated section connected to the center conductor.
4. Insulate the paddle completely so you don’t accidentally touch anything conductive.

How to use it: Set the scope to a reasonably sensitive vertical scale, use a short timebase for
high-speed signals, and slowly sweep the paddle over traces/components. Rotate the probe and watch amplitude change.
Stronger pickup usually means you’re closer to the culprit or aligned with the field.

Pro tip: If your scope has an FFT/spectrum view, this probe becomes a bargain-basement EMI
“stethoscope.” You won’t get absolute dBµV numbers, but you’ll instantly see peaks move when you add a ferrite,
change a slew rate, or reroute a trace.

2) The Coax Loop H-Field Probe (Current Sniffer)

Best for: locating high di/dt current loops, switching regulator hotspots, ground bounce zones, and radiating loop areas.

Materials (typical):

• Coax cable with BNC
• A small piece of semi-rigid wire or just the coax itself
• Heat-shrink/tape

How to build it:

1. Make a small loop at the end of the coax (think: a tiny ring, often a few millimeters to a couple centimeters).
2. Expose the shield and center conductor so they form a loop that’s mechanically stable.
3. Insulate the loop so it doesn’t short anything on contact.

Why it works: a loop couples to changing magnetic fields, which are created by changing currents.
Small loops are great for spatial resolution (finding the exact component/trace), while larger loops pick up more
signal but blur the “where.”

Use case example: Your buck converter “works,” but your radio module resets whenever the converter
load steps. Sweep the loop probe around the power stage and you’ll often see a noisy zone around the switch node,
inductor, or the high-current return path. Move a decoupling cap, tighten the loop area, or tweak gate resistance,
and watch the spectrum peak drop.

3) The “Capacitive Tap” Probe for Non-Invasive Waveform Peeking

Best for: lightly observing repetitive waveforms on insulated wires or test pads when you don’t want to clip on.

This is the simplest concept of all: put a small insulated conductor near the signal, and the capacitance between
them forms a tiny coupling capacitor. Your scope input provides the load. You’re effectively creating a crude
high-pass path: fast edges couple more strongly than slow changes.

How to build it: an insulated wire “whip” connected to the coax center conductor, with the shield kept short and controlled.

Reality check: the displayed amplitude is not “the” signal amplitude. It’s “how much of the signal’s
changing edge made it through your accidental capacitor today.” Still, for “is it toggling?” and “what’s the frequency?”
it’s shockingly effective.

Settings That Make These Probes Less Annoying

Choose 1 MΩ vs 50 Ω Intentionally

For most DIY non-contact probes, you’ll use the scope’s 1 MΩ input, because it’s more sensitive and
won’t heavily load the pickup network. A 50 Ω input can swallow your tiny induced signal unless you add an amplifier
(which stops being “nearly nothing” pretty quickly).

Bandwidth Limits Are a Feature (Sometimes)

If your probe is acting like an AM radio for every fluorescent light in the building, try enabling bandwidth limit
on the scope, adding averaging, or using a shorter coax lead. Noise pickup is not a moral failureit’s just physics
with no sympathy.

Consistency Beats Calibration

Since distance and orientation dominate results, be consistent: same probe angle, same height above the board, same
sweep speed. Use the tool for comparative troubleshooting: “Change A reduced peak B by 10 dB (relative).”

Safety: “Non-Contact” Does Not Mean “Risk-Free”

A DIY sniffer probe is not a CAT-rated instrument. Do not treat it like a mains tester. If you’re anywhere near
line voltage, high-energy power stages, or unknown equipment, use properly rated probes and follow standard lab
safety practices. Also remember: your oscilloscope ground is often tied to earth ground (depending on scope type),
and “creative” grounding accidents are how people learn expensive lessons.

If you need to measure high voltage, look for probes designed and rated for that job, and respect measurement
category concepts. The cost is not just plastic and resistorsit’s tested insulation, creepage/clearance, and
documented limits.

When a Cheap Non-Contact Probe Is the Best Tool in the Room

• EMI/EMC pre-checks: Find the loudest offenders before you ever book a compliance lab.
• Switch-mode power supply debugging: Identify noisy current loops and ringing zones quickly.
• Clock hunting: Trace where a clock really goes (and where it leaks).
• Cable emissions: See which harness is acting like an antenna.
• “Is it alive?” checks: Confirm oscillation, frequency, and modulation without soldering.

When You Should Stop Being Cheap (Respectfully)

DIY non-contact probes are brilliant for discovery and relative comparison. But you should reach for a proper probe when:

• You need accurate voltage at a node (not a coupled representation).
• You’re working on high-speed integrity where ringing/overshoot must be measured quantitatively.
• You’re near mains/high energy and safety ratings matter.
• You need repeatable, documented bandwidth/attenuation across setups and teams.

Conclusion

A non contact scope probe costs nearly nothing because it’s mostly geometry and good habits: a controlled piece of
conductor, a coax cable, and your oscilloscope’s high-impedance input doing the rest. Used correctly, it’s one of
the fastest ways to answer the questions that stall real projects: “Where is the noise coming from?” and “What
changed when I tweaked that layout?”

Think of it less like a precision probe and more like a metal detector for bad engineering vibes. You won’t get
perfect numbers, but you’ll get answersquicklyand that’s often what keeps deadlines from eating your lunch.

Real-World Experiences: Living With a Nearly-Free Non-Contact Probe (500+ Words)

The first time you use a DIY non-contact probe, you’ll probably have an emotional journey that goes something like:
excitement → confusion → mild suspicion of the universe → enlightenment → smug satisfaction. That’s normal.
Near-field probing feels “too easy” because you’re not clipping onto anything, and yet the scope suddenly shows
a waveform like it’s gossiping about the board’s secrets.

Start with something friendly, like a dev board with a visible clock oscillator. Hover the E-field paddle over the
crystal can and you’ll see a strong pickup. Move a centimeter away and the amplitude dropssometimes dramatically.
That moment teaches the most important lesson: distance is basically your gain knob. You’ll also notice that rotating
the probe changes the signal. Congratulations, you’ve discovered polarization and coupling geometry without having
to read a 40-page antenna primer (though the 40-page primer still has its charms).

Next, try the H-field loop on a switching regulator. If you sweep it over the inductor, you’ll see energy that
looks very “periodic,” often with ringing riding on top. The fun part is using this as a scavenger hunt tool:
move the probe along the high-current path and watch where the spectrum spikes. You’ll find that some of the noisiest
spots aren’t the big obvious componentsthey’re the short, “boring” segments of return current where the loop area
is accidentally large. You can literally watch emissions change when you reposition a capacitor by a few millimeters.
That’s the kind of feedback that turns layout “rules” into intuition.

Then comes the “why is my probe picking up everything?” phase. You’ll wave the probe near a USB cable and see a
glorious mess. You’ll hover near a bench supply and suddenly you’re measuring the ambient electromagnetic culture
of your lab. This is where coax length and routing matter. A long unshielded pickup lead behaves like an antenna
with opinions. Shorten the probe lead, keep the shield intact, and suddenly your measurements become less like
astrology and more like troubleshooting.

One of the most practical habits is to make the probe part of a before/after ritual. Do a baseline sweep and save
a screenshot or scope reference trace. Then change one thingadd a ferrite bead, slow an edge rate, add an RC snubber,
tighten a ground returnand sweep again in the same way. The absolute numbers won’t be “certified,” but the direction
and magnitude of change are hugely informative. If you see a peak drop consistently across multiple probe positions,
you probably made a real improvement, not just a measurement illusion.

Finally, you’ll develop a healthy respect for the phrase “non-contact.” It’s wonderfully non-invasive for many
debug tasks, but it’s not a permission slip to poke around dangerous circuits. Treat the probe like a diagnostic
antenna, not like a magic wand of safety. If you keep that boundary clear, a nearly-free non-contact probe becomes
one of those tools you reach for constantlybecause it answers the right questions fast, and it does it without
making the circuit angry at you for touching it.
