Pong In Hardware… Virtually

Pong is the grilled-cheese of digital design: simple ingredients, surprisingly satisfying, and somehow it still wins
the potluck. Half a century after it first bounced a square “ball” across a screen, Pong remains the perfect
sandbox for learning how video signals, timing, and game logic actually workespecially when you build it in
hardware.

But here’s the modern twist: you don’t have to solder a single wire to start. Today, you can build Pong “in
hardware” while living entirely inside a virtual worldwriting Verilog or VHDL, running simulations, watching
waveforms, and proving your design works before you ever flash an FPGA. That’s Pong in hardware… virtually:
a retro game that teaches very current engineering habitsiterate fast, verify early, and only then let the magic
smoke anywhere near your desk.

Why Pong Still Matters (Even If It Looks Like Two Bricks and a Pixel)

Pong’s enduring power isn’t graphics. It’s clarity. The rules are instantly understandable: two paddles, one ball,
a score, and that little “click” that somehow turns a dot into a competition. Because the game is so minimal, you
can focus on the fundamentals: clocks, counters, collision detection, and video timing.

It also matters historically. Pong didn’t invent video games, but it helped video games become a public habitat
bars, in living rooms, and eventually everywhere. Museums and engineering storytellers still point to Pong as a
moment where clever electronics and mass appeal finally shook hands.

The Original Pong: A Game Made of Timing, Not Code

No CPU, No “Game Loop,” Just Dedicated Logic

If you’re used to thinking “game = software,” Pong is your friendly reality check. Early arcade machines weren’t
running a modern program on a general-purpose CPU. Instead, the game’s behavior came from dedicated electronic
circuitslogic gates, counters, and timing signals cooperating like a tiny orchestra with exactly one song.

That’s why Pong is such a beloved learning project: you can map almost every feature to a clear hardware concept.
Want the ball to move? That’s a position register updated at a controlled rate. Want paddle movement? That’s input
sampling plus bounds checking. Want scoring? That’s state and counters.

Video Sync: The Hidden Boss Level

The “secret sauce” of classic video games is that they’re as much about signals as they are about
gameplay. Before you can draw a paddle, you need to generate a stable video outputmeaning horizontal and vertical
timing, blanking, and sync pulses. In early hardware designs, this often involved crystal oscillators and fast
digital logic that could get… electrically enthusiastic.

That’s not just trivia. When you implement Pong in hardware today, you’ll discover the same truth: if your timing
is even slightly off, your beautiful “retro masterpiece” becomes modern art. Your monitor may go black, roll, or
politely say: “No signal.” (Which is monitor-speak for “I don’t trust you.”)

What “Pong in Hardware” Means Today

“Hardware Pong” can mean a few different things now. The fun is choosing your difficulty level.

Option 1: Discrete Logic Pong (The “I Like Pain” Edition)

You can build Pong with basic logic chipscounters, flip-flops, adders, comparators, and a handful of clever
tricks. This approach is wildly educational because it forces you to think in signals and timing, not functions
and loops. It’s also a fast way to learn why engineers invented programmable logic in the first place.

Option 2: Microcontroller Pong (Software Wearing a Hardware Costume)

You can generate a video signal and run Pong logic on a microcontroller. It’s approachable and cheap, but it
isn’t the same as “no-code” dedicated logic. Still, it’s a great stepping stone if you want visible results fast.

Option 3: FPGA Pong (The Sweet Spot)

FPGAs let you describe hardware in HDL (like Verilog) and then configure a chip to behave like that hardware. You
can build a VGA controller, game logic, and input handling as concurrent circuitscloser in spirit to early arcade
design than a traditional software emulator.

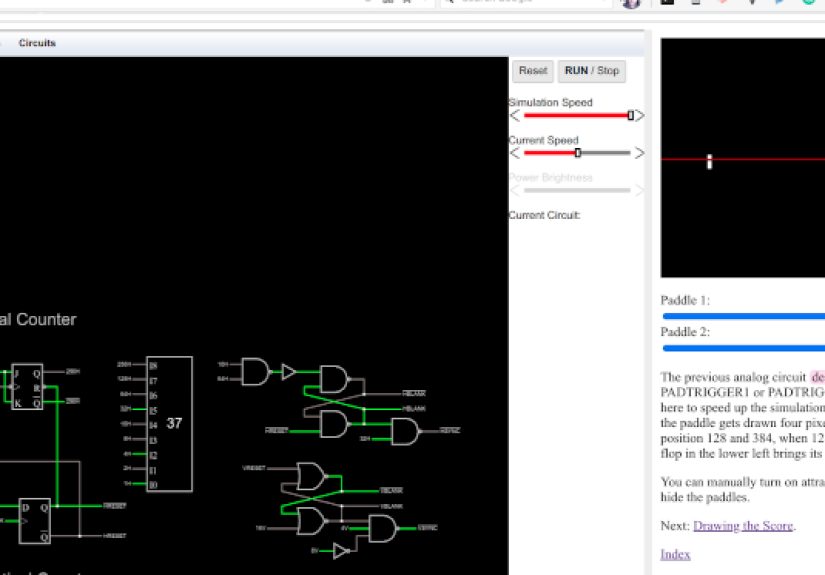

The “Virtually” Part: Building Hardware Before You Touch Hardware

HDL Simulation: Your Virtual Arcade Cabinet

Here’s the workflow that makes “hardware… virtually” so powerful:

1. Write the HDL (your circuit description).
2. Simulate it (run the design in software and observe signals over time).
3. Verify behavior with a testbench (automated stimulus + checks).
4. Synthesize and implement (turn HDL into real FPGA configuration).
5. Test on hardware (now with way fewer surprises).

Simulation is where you catch the classic “why is my ball teleporting into the paddle?” problemswithout needing
to reflash a board 47 times. You can inspect internal signals that are otherwise invisible: collision flags, frame
ticks, paddle bounds, score state, sync pulses, and more.

Functional vs Timing Simulation (A Quick Reality Check)

Early on, you’ll mostly run functional simulation: does the logic behave correctly? Later, you may
care about timing simulation: do delays and routing still allow correct operation at your chosen
clock rates? FPGA toolchains often support timing simulation workflows (commonly involving delay annotation files),
but many beginner projects can ship safely with careful constraints and functional verificationespecially at
friendly pixel clocks.

Digital Twin Thinking for Retro Games

Engineers love “digital twin” concepts for complicated machines. Pong is the tiny, charming version: you create a
virtual model of your hardware and test it under conditions that would be annoying to reproduce physically.
Example: you can simulate a player “jittering” the paddle rapidly, or a ball hitting edge cases, or a reset
occurring mid-framethen confirm your circuit stays sane.

A Practical Blueprint: How FPGA Pong Usually Works

1) Generate a Stable Video Timing Core

A classic beginner target is 640×480 at ~60 Hz over VGA, which relies on a pixel clock and specific horizontal and
vertical timing intervals. In practice, you don’t “draw lines.” You maintain counters:
hcount (pixel position across a line) and vcount (line position down a frame).
Sync pulses and blanking are derived from those counters.

Once you have hcount/vcount, you can decide: “Is the current pixel inside the paddle rectangle? Inside the ball
square? Inside the score area?” If yes, output color. If not, output background. Congratulations: you’re painting
with math and stubbornness.

2) Create a Frame Tick (So the Ball Doesn’t Move at Light Speed)

Your pixel clock might be tens of MHz. If you updated the ball position every pixel, the ball would leave Earth’s
atmosphere. So you generate a slower enable pulseoften once per frame or once every N framesto update game state.
That slow tick becomes the heartbeat of your Pong physics.

3) Represent Motion with Tiny Registers

A common scheme uses registers like:

• ball_x, ball_y: current position
• ball_vx, ball_vy: velocity direction (and optionally magnitude)
• paddle1_y, paddle2_y: paddle positions

Collision detection becomes comparisons:
“If ball_x hits left wall, flip vx.” “If ball overlaps paddle area, flip vx and optionally tweak vy.”
You can even recreate the classic “hit the edge of the paddle = sharper bounce” behavior by splitting the paddle
into zones and choosing different velocity outcomes.

4) Inputs: From Knobs to Keyboards

Original Pong cabinets used simple controls (famously knobs) to move paddles. In FPGA builds, you might use:
buttons, a rotary encoder, a PS/2 keyboard, a USB HID interface, or a joystick module.
The key hardware lesson is the same: real inputs bounce and glitch. You’ll want debouncing and clean sampling,
especially if you’re updating paddle positions on a frame tick.

5) Verify Virtually, Then Deploy for Real

A strong Pong project proves correctness in simulation:

• Sync and blanking waveforms match expected timing.
• Ball updates occur only on tick boundaries.
• Score increments exactly once per “miss,” not 18 times per frame.
• Reset returns the system to a known good state.

Thenand only thenyou synthesize and run it on hardware. The result feels like cheating… in the best way.

FPGA vs Software Emulation: Two Different Kinds of “Virtual”

“Virtual Pong” can mean software emulation: a program mimicking original hardware behavior on a CPU. FPGA projects
are a different flavor of virtual: the FPGA is reconfigured so the hardware itself behaves like the target system.
Both can be accurate. Both can be imperfect. But they teach different lessons.

Retro communities love FPGA-based recreation because it can feel “hardware-authentic,” especially around timing and
responsiveness, and because it forces a deeper understanding of how the original machines worked. On the other
hand, software emulation can be remarkably accurate tooand often far easier to distribute and update.

Pong sits at the crossroads: simple enough to implement in either world, but rich enough to expose what timing,
signals, and concurrency really mean.

Common Gotchas (and How to Laugh Instead of Cry)

• The off-by-one apocalypse: Your paddle is one pixel taller than you think, so collisions feel
  “ghosty.” Fix your comparison boundaries and test edge cases.
• Moving during blanking: If you update positions mid-frame (instead of on a tick), the ball can
  tear or stutter. Use a clean frame tick.
• Input bounce: Buttons lie. Debounce them or sample them slowly.
• Score spam: If you detect “ball out of bounds” every cycle, you’ll add 60 points in one second.
  Add a state that waits for reset/serve.
• Clock domain chaos: If you mix clocks (say, one for video and one for inputs), synchronize
  signals properly. Metastability is not a personality trait you want in your paddle.

Experience Notes: Pong In Hardware… Virtually ( of What It Feels Like)

If you’ve never built hardware virtually, the first experience feels a little like learning to cook by watching
the heat flow through a pan in slow motion. You write a few lines of HDLjust a counter and a couple of comparisons
and then you run a simulation. Suddenly, you’re staring at a waveform viewer like it’s a heart monitor. Your design
is alive. Not “alive” like a pet, but “alive” like a machine that will absolutely do exactly what you told it to,
including the parts you didn’t realize you told it to do.

The earliest “Pong moments” are weirdly emotional for such a minimalist game. The first time your hsync and vsync
pulses look correct, you get that quiet engineer joy: this should work. The next moment is usually less
poetic: your monitor shows nothing. So you go back to simulation, zoom in, and realize you miscounted porch timing
by a handful of pixels. You fix it, resimulate, and the pulses snap into place like a puzzle piece. That’s the
rhythm: write, simulate, inspect, adjust, repeatfast enough that debugging feels like a conversation instead of a
punishment.

Then comes the ball. In software, a ball is a sprite you move each frame. In hardware, your ball is a position
register plus logic that decides whether the current pixel is “inside” it. The first time your ball appears as a
square on the screen, you don’t think, “Nice square.” You think, “I successfully convinced electrons to draw a
shape using nothing but time.” That’s a special kind of delight.

The funniest part is how often “obvious” ideas turn into teachable surprises. You decide the ball should speed up
after each paddle hit. Great! Then you implement it by reducing the tick divider. In simulation it looks fine, but
on the monitor it becomes a strobe-light nightmare because your update rate interacts with how your eyes perceive
motion. So you add a cap. Or you increase speed only every few hits. Or you switch to fixed-point velocity so the
ball can move two pixels per tick sometimes without becoming a teleportation wizard. Pong starts teaching you game
feelthrough pure timing.

Paddle control has its own personality arc. Buttons feel crude, so you try a rotary encoder. Now you’re learning
about debouncing and sampling, because the paddle jitters like it had too much coffee. You fix it with a small
filter, and the movement becomes smooth. That’s another “hardware virtue” lesson: stability is engineered, not
assumed.

Finally, the best experience comes when you deploy to the FPGA after heavy simulation. The screen lights up, the
paddles move, and the ball bounces. It feels less like “I ran a program” and more like “I built a tiny machine
that plays a game.” And when it works on the first flashbecause you tested virtuallyyou’ll understand why
professionals treat simulation and verification like seatbelts: not glamorous, but unbelievably good at keeping
your day from becoming a disaster movie.
